PANEL  PROFILES / JOINT CONFIGURATIONS



Please click on the  links below (or scroll down) to view detail drawing


                  STD   Backer rod and caulk wall and soffit panel system
                  STD-DRI-RS   Gasketed (rain screen) wall and soffit panel system
                  Met-Flush   Flush vertical joint wall panel system
                  Met-Flush II   Flush vertical & horizontal joints (limited applications)

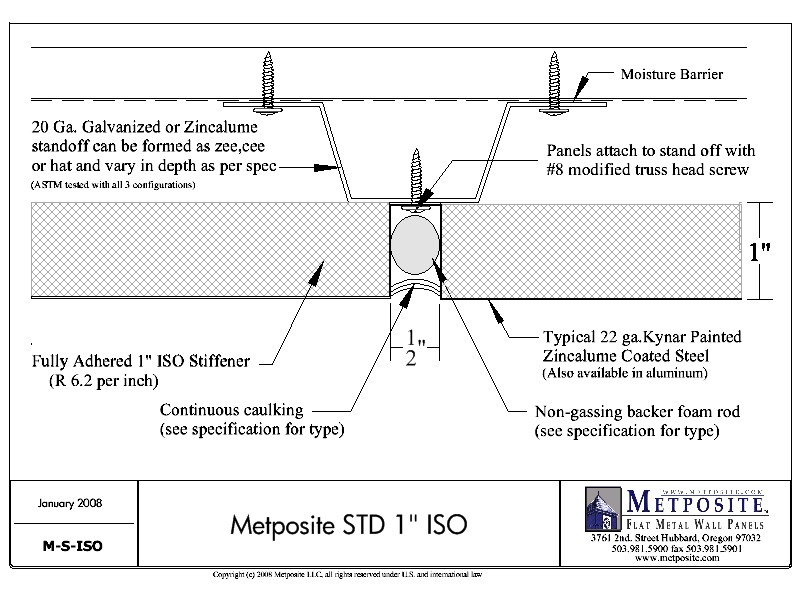

STD   Backer rod and caulk wall and soffit panel system




Example profile/joint configurations shown with 1" iso backer.      Click here to view  full set of details in all backer options

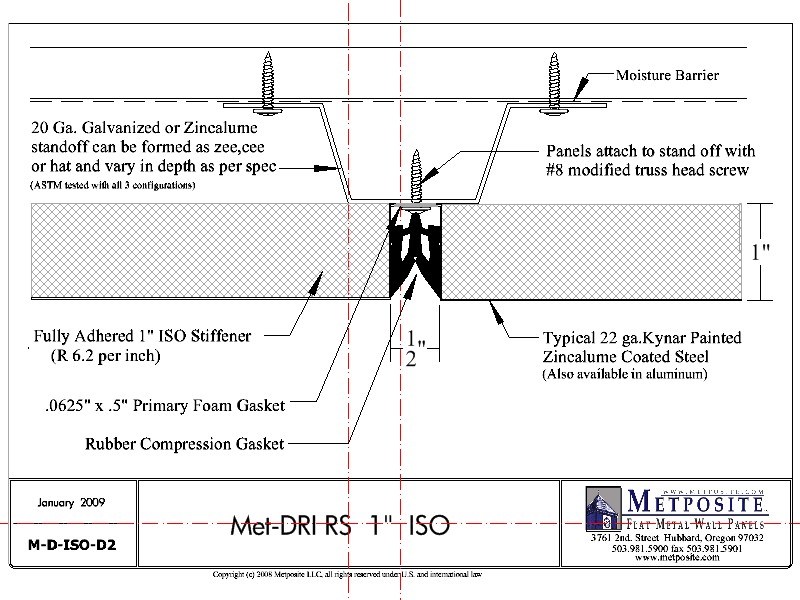

STD-DRI-RS   Gasketed (rain screen) wall and soffit panel system

Example profile/joint configurations shown with 1" iso backer.      Click here to view  full set of details in all backer options

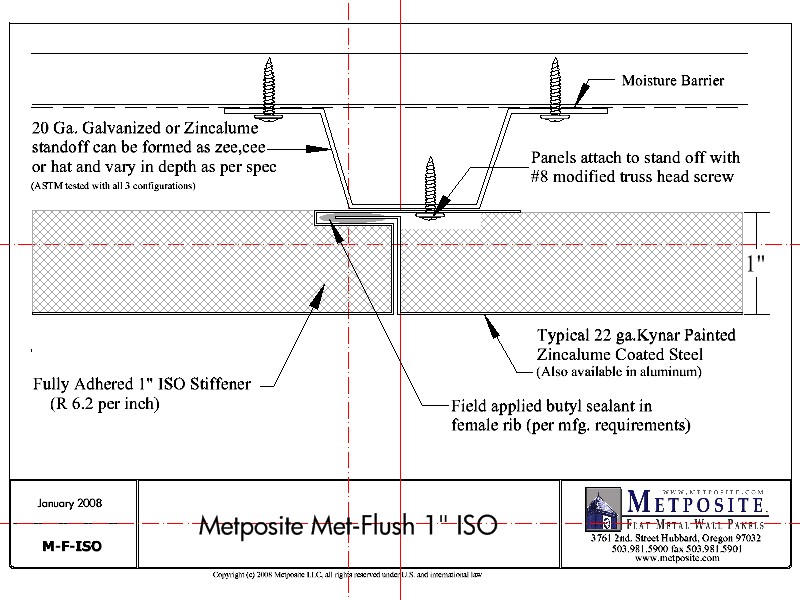

Met-Flush   Flush vertical joint wall panel system

Example profile/joint configurations shown with 1" iso backer.      Click here to view  full set of details in all backer options

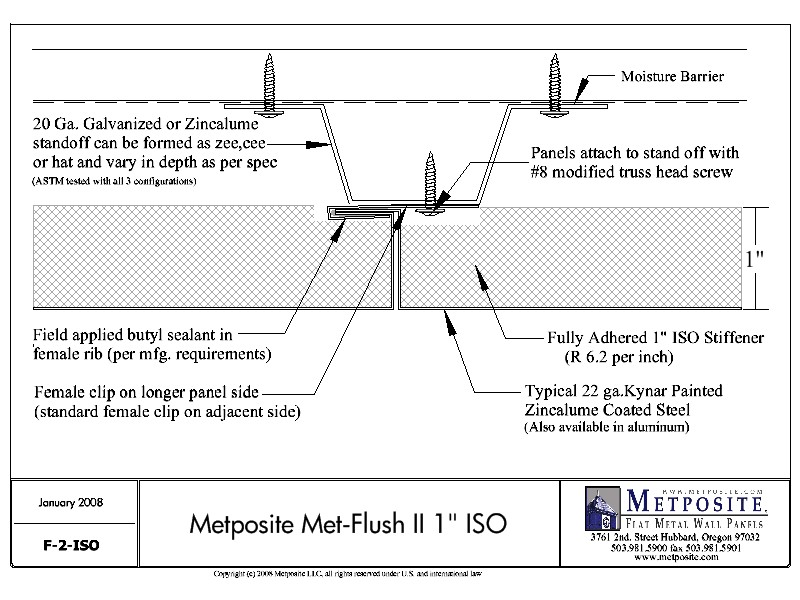

Met-Flush II   Flush vertical & horizontal joints (limited applications)

Example profile/joint configurations shown with 1" iso backer.      Click here to view  full set of details in all backer options
