PANEL  STIFFENER / BACKING OPTIONS



Please click on the  links below (or scroll down) to view detail drawing


                  ISO 1"   1 layer of1"poli-iso foam
                  Pro-Form 1.3"   1 layer or 10mm fluted poli-pro & 1" iso foam
                  PRO .75"   2 layers or 10mm fluted poli-pro
                  Core E-84 1"   1 layer of aluminum honeycomb

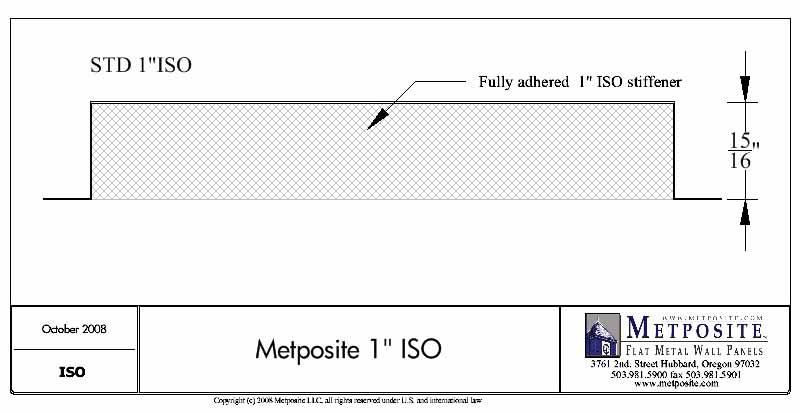

ISO 1"   1 layer of1"poli-iso foam



Example stiffener/backing options shown as flat STD panel      Click here to view  full set of details in all profile/joint configurations

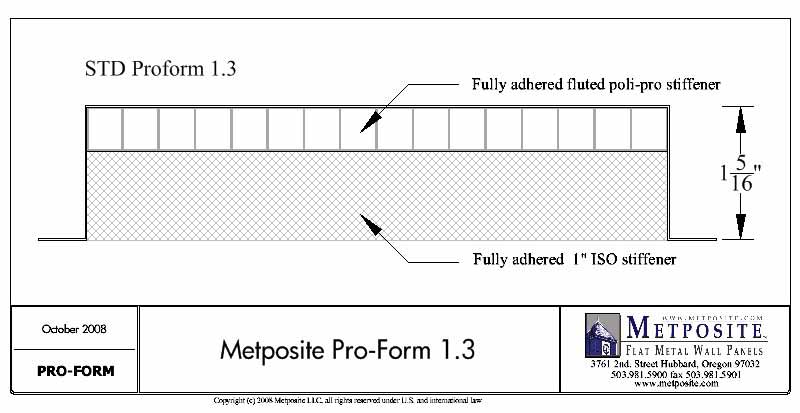

Pro-Form 1.3"   1 layer or 10mm fluted poli-pro & 1" iso foam

Example stiffener/backing options shown as flat STD panel      Click here to view  full set of details in all profile/joint configurations

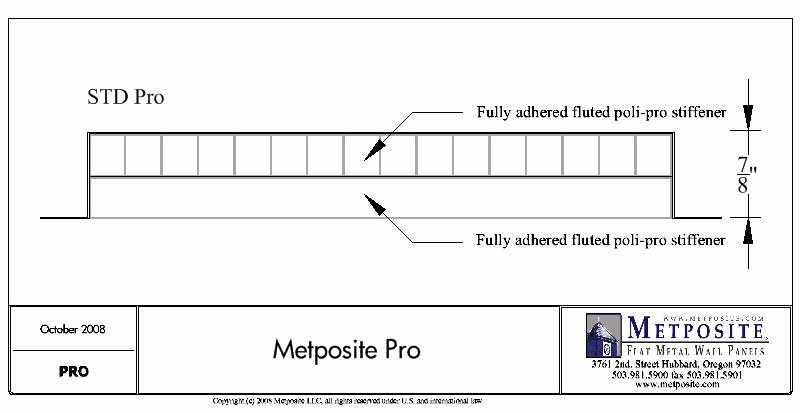

PRO .75"   2 layers or 10mm fluted poli-pro

Example stiffener/backing options shown as flat STD panel      Click here to view  full set of details in all profile/joint configurations

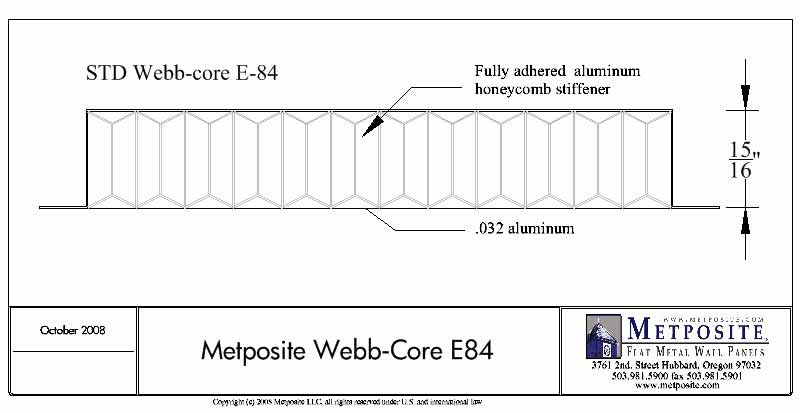

Core E-84  1"   1 layer of aluminum honeycomb

Example stiffener/backing options shown as flat STD panel      Click here to view  full set of details in all profile/joint configurations

Click here to return to index at top of page
